DUOYUAN AGV

Name: DUOYUAN AGV
Brand: DUOYUAN

The AGV (Automated Guided Vehicle) product line focuses on the core needs of smart manufacturing and smart logistics to create intelligent handling solutions covering multiple scenarios, enabling industrial upgrading with high precision, strong adaptability and intelligent collaboration capabilities.

Classification:

Intelligent Intralogistics

Conveying equipment

Immediately consult:

+86-371-62138138

info@zzdy.cn WhatsApp Inquiry

online message

Related Items

Product Introduction Related Products

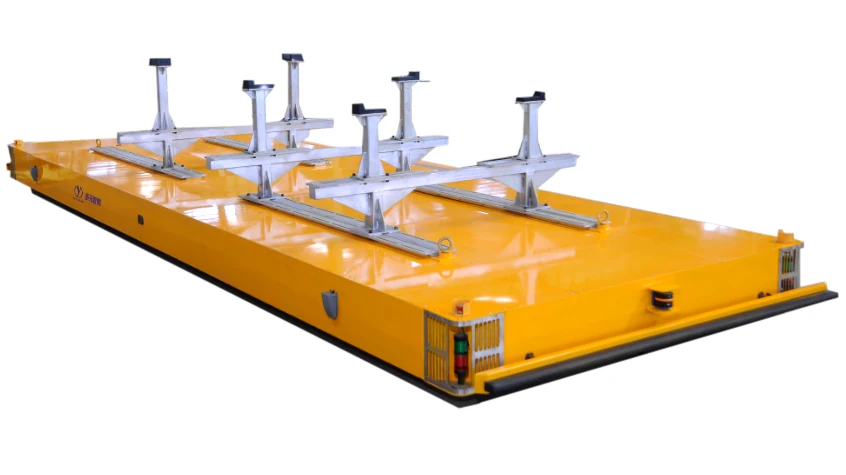

DUOYUAN AGV is deeply customized based on industrial scenarios, covering all needs from lightweight handling to ultra-heavy load transportation, supporting multi-modal guidance technologies such as magnetic navigation and electromagnetic navigation, equipped with modular functional components (scissor lift/roller conveyor/traction mechanism), and adapting to the intelligent upgrade of multiple industries such as automobile manufacturing and heavy industry logistics. The product achieves efficient endurance through a flexible drive system (differential/steering wheel) and a hybrid power supply solution (lithium battery/ contactless charging), meeting the requirements of high-precision positioning (±5mm), complex path planning, and 7×24 hours of continuous operation.

Specifications Sheet

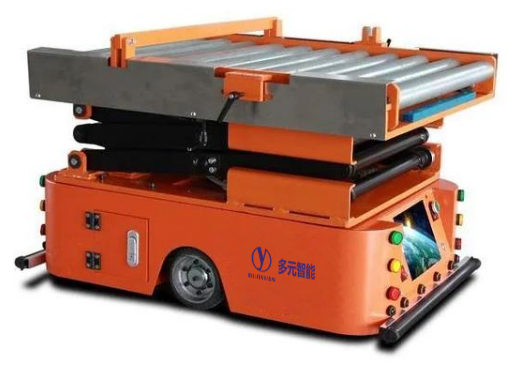

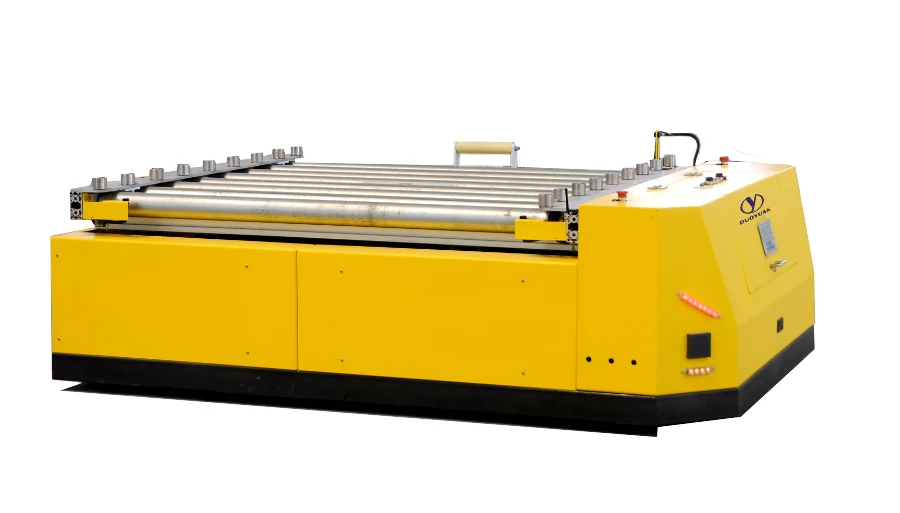

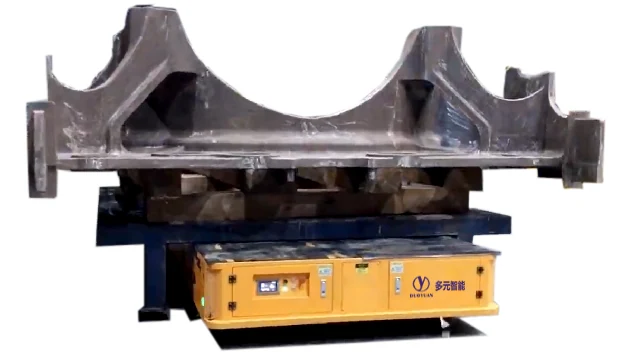

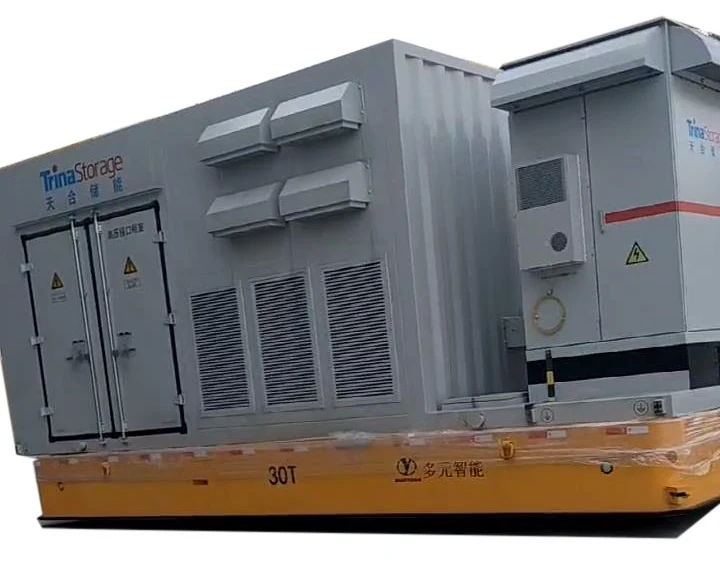

Model Category	Heavy-duty Lifting AGV	Roller Conveyor AGV	Underride Towing AGV	Ultra-heavy-duty Transport AGV
Dimensions	5700×2200×700mm	4800×1900×300mm	1600×350×260mm	5700×2200×700mm
Load Capacity	Lifting: 2500KG	Payload: 0.5~2T	Towing: 0.5~3T	Payload: 0.5~30T

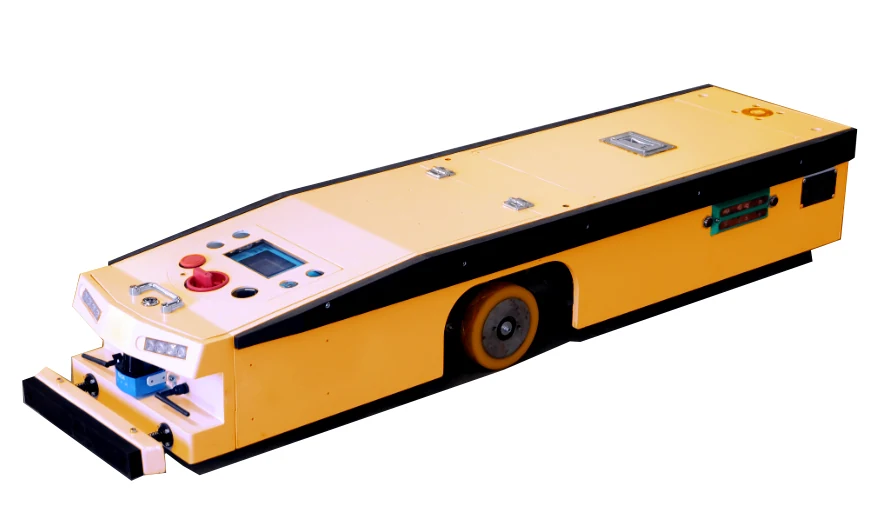

Core Function Module	Electric scissor/cylindrical lift	Chain/belt-type roller	Multi-mode towing hooks	Heavy-duty structural platform
Drive Configuration	Dual-mode (steering/differential)	Differential/steering wheel	Differential/steering wheel	Differential/steering wheel
Power Supply	Battery/non-contact hybrid	Lithium battery (online charging)	Lithium/lead-acid battery	Lithium battery (online charging)
Guidance Technology	Magnetic tape/wire/electromagnetic	Magnetic tape/wire	Magnetic tape/wire/nail	Magnetic tape/wire/electromagnetic
Operating Speed	-	-	6~48m/min	6~36m/min

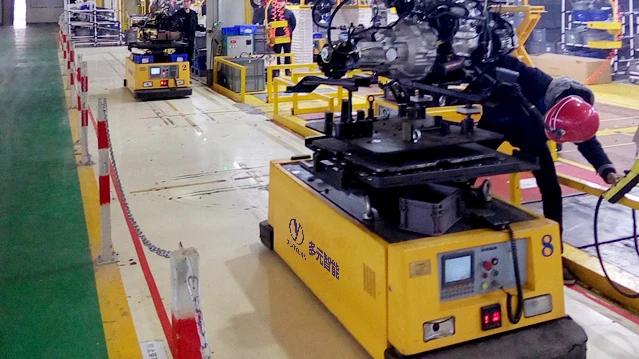

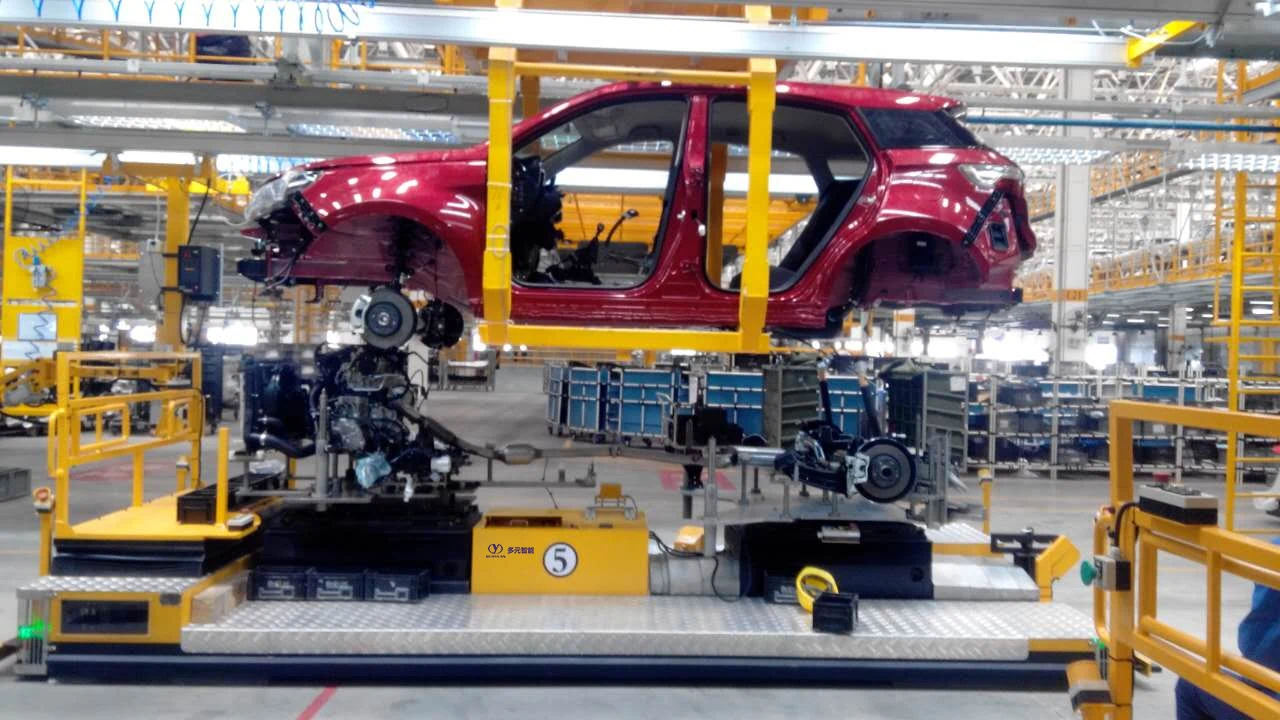

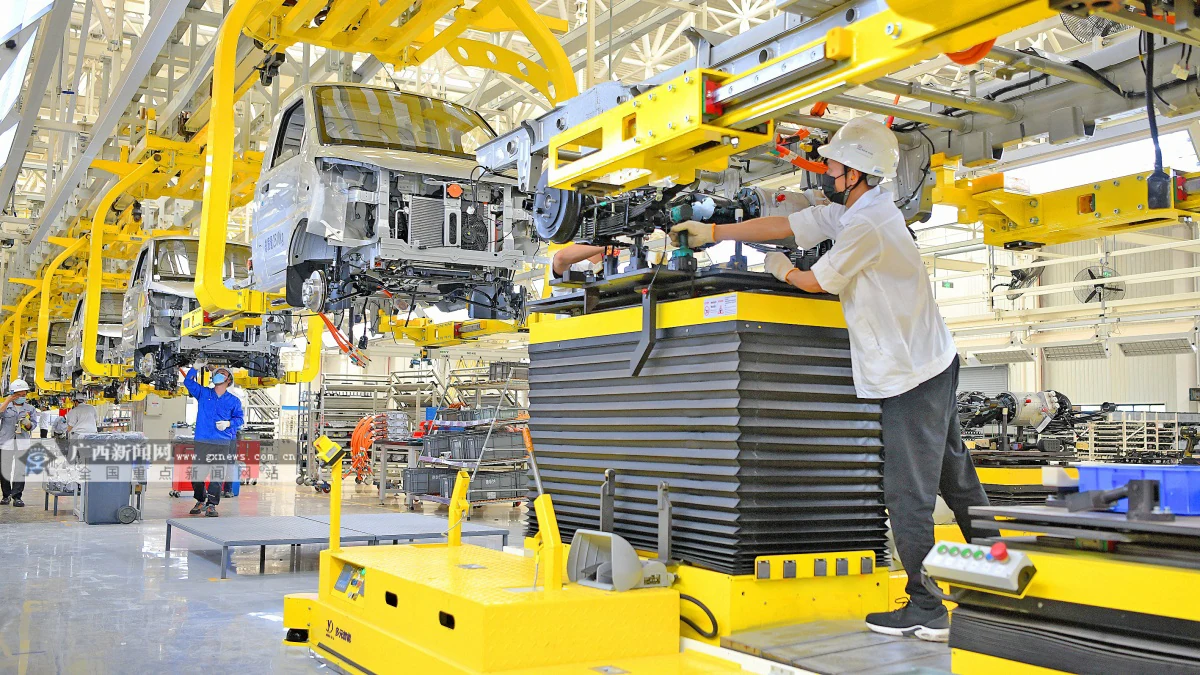

Application Scenarios	Heavy component lifting & assembly	Warehouse line docking	Flexible automotive parts delivery	Cross-plant transport of ultra-heavy materials

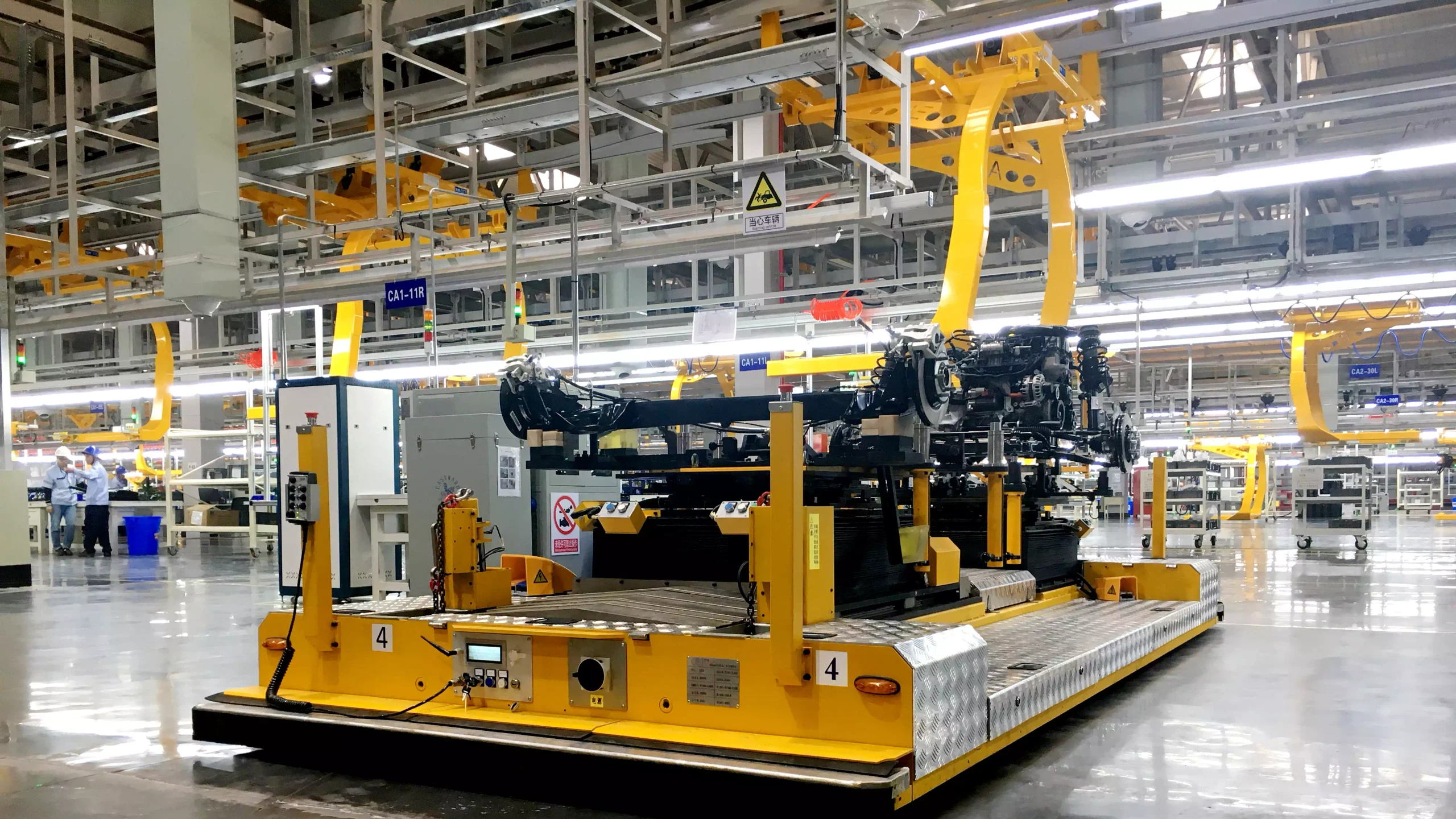

DUOYUAN AGV is part of DUOYUAN's work on conveyors, skid systems, storage lines and AGV transfer equipment. The page shows the equipment family and project images. Rated load, speed, material range and cycle time are confirmed in the engineering review for that vehicle and plant. They are not fixed catalog values.

Questions before a technical review

How are conveyor and AGV systems specified?

The body or part, transfer height, storage need and interface with the existing line determine the conveyor or AGV arrangement. Payload is calculated for that project.

Are capacity, speed and material range published as fixed specifications?

No. DUOYUAN confirms rated load, line speed, material grade and cycle time during the engineering review. A category page does not state a payload, thickness or tolerance that applies to every project.

What should a buyer send with an inquiry?

Send the vehicle or part, the process step, the target plant and any layout constraints to info@zzdy.cn or call +86-371-62138138. The engineering team replies with the project scope. Do not treat marketing copy on this site as a guaranteed technical parameter.
