Full CNC combined equipment C

Name: Full CNC combined equipment C
Brand: DUOYUAN

Classification:

Body frame assembly equipment

Immediately consult:

+86-371-62138138

info@zzdy.cn WhatsApp Inquiry

online message

Related Items

Product Introduction Related Products

Equipment model: DYHZ-C

Equipment features: universal, short change time, high assembly precision

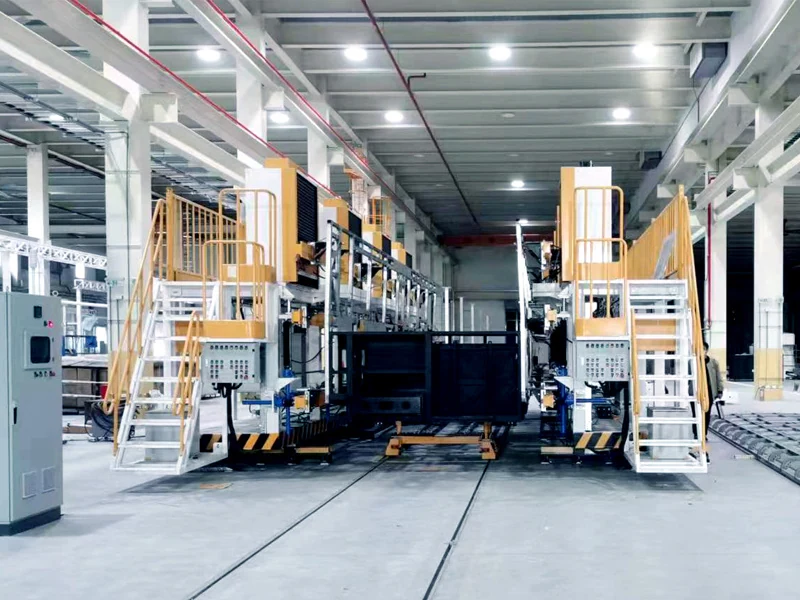

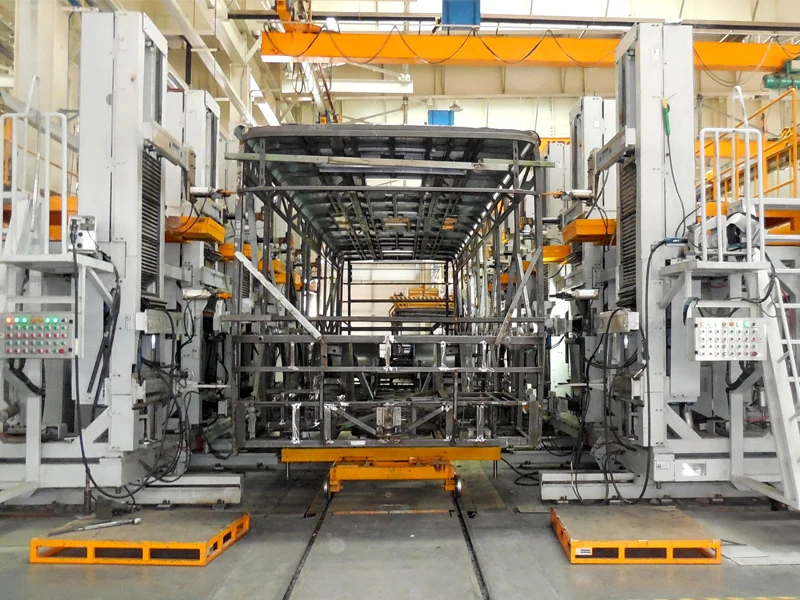

Equipment Description: The DYHZ-C series bus body frame assembling machine is of numerical control automatic adjustment type. The whole equipment movement part is driven by servo motor to drive worm screw elevator for transmission. The equipment locates the upper window beam (or window upright post), waist beam and skirt. The waist beam can be raised and lowered in the direction of vehicle height, the skirt can be extended in the direction of vehicle width, and the upper window beam can move in the direction of vehicle height and vehicle width. The equipment adopts modular arrangement to increase the operation space of personnel. The equipment is positioned as a universal adjustable type to meet the production model, with a vehicle width of 1.8~2.55 meters and a vehicle length of 6~13.7 meters. When in use, the model parameters are pre-stored in the system PLC, and only need to be called when in use. All parts will automatically run in place, and the change time is less than 5 minutes.

Equipment configuration: 12 meters long, with 6 column modules on one side. The servo control part adopts Delta products, and the pneumatic part adopts Yadke products.

Equipment selection: floor (or chassis) lifting and positioning device (there are three options: hydraulic lifting, ordinary motor mechanical lifting, servo-driven mechanical lifting); lifting of the upper platform on both sides of the equipment truss; front wall positioning, positioning of the pillars on both sides of the door.

Note: Servo drive and pneumatic parts can be designated by the buyer brand. Can be produced according to the requirements of the demand side.

Full CNC combined equipment C is part of DUOYUAN's work on automotive manufacturing equipment engineered for a specific vehicle and plant. The page shows the equipment family and project images. Rated load, speed, material range and cycle time are confirmed in the engineering review for that vehicle and plant. They are not fixed catalog values.

Questions before a technical review

What is this equipment page for?

It identifies the equipment family and shows related project images. The build specification is issued after DUOYUAN reviews the part, process and plant.

Are capacity, speed and material range published as fixed specifications?

No. DUOYUAN confirms rated load, line speed, material grade and cycle time during the engineering review. A category page does not state a payload, thickness or tolerance that applies to every project.

What should a buyer send with an inquiry?

Send the vehicle or part, the process step, the target plant and any layout constraints to info@zzdy.cn or call +86-371-62138138. The engineering team replies with the project scope. Do not treat marketing copy on this site as a guaranteed technical parameter.
