The AGV (Automated Guided Vehicle) product line focuses on the core needs of smart manufacturing and smart logistics to create intelligent handling solutions covering multiple scenarios, enabling industrial upgrading with high precision, strong adaptability and intelligent collaboration capabilities.

Classification:

Intelligent logistics transportation

Conveying equipment

Intelligent logistics transportation

Immediately consult:

0371-62138138

online message
Related Items
Product Introduction Related Products

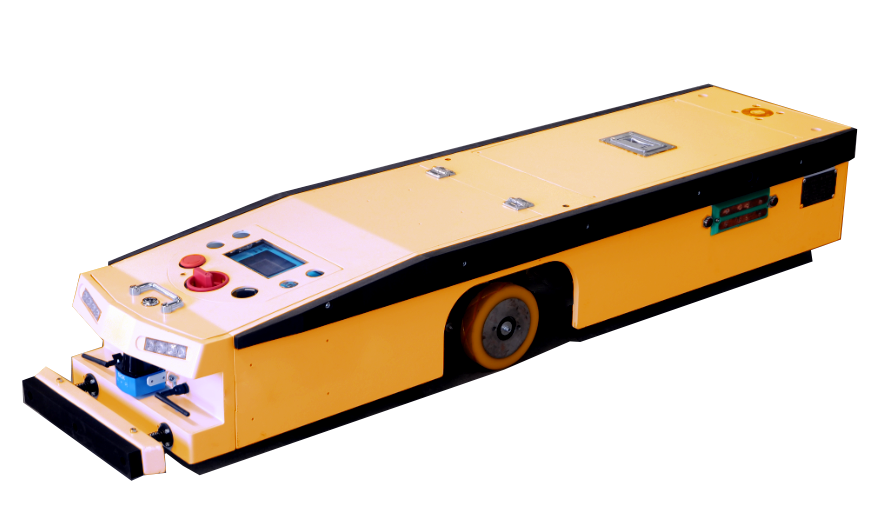

DUOYUAN AGV is deeply customized based on industrial scenarios, covering all needs from lightweight handling to ultra-heavy load transportation, supporting multi-modal guidance technologies such as magnetic navigation and electromagnetic navigation, equipped with modular functional components (scissor lift/roller conveyor/traction mechanism), and adapting to the intelligent upgrade of multiple industries such as automobile manufacturing and heavy industry logistics. The product achieves efficient endurance through a flexible drive system (differential/steering wheel) and a hybrid power supply solution (lithium battery/ contactless charging), meeting the requirements of high-precision positioning (±5mm), complex path planning, and 7×24 hours of continuous operation.

Specifications Sheet

Model Category

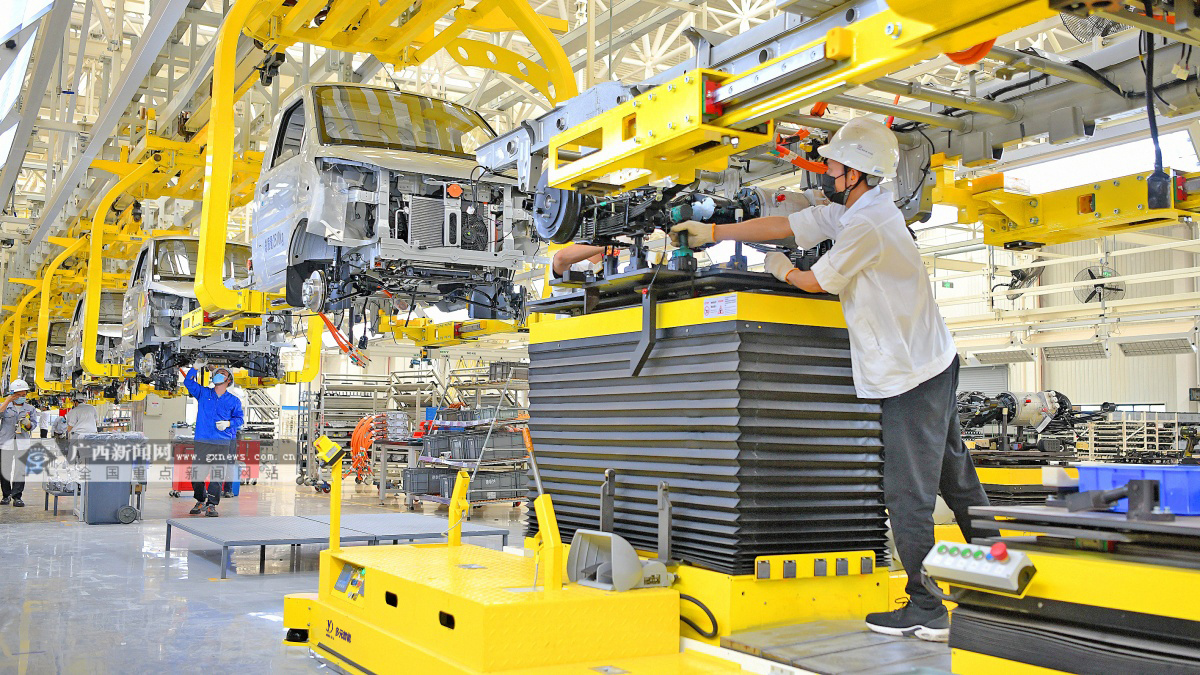

Heavy-duty Lifting AGV

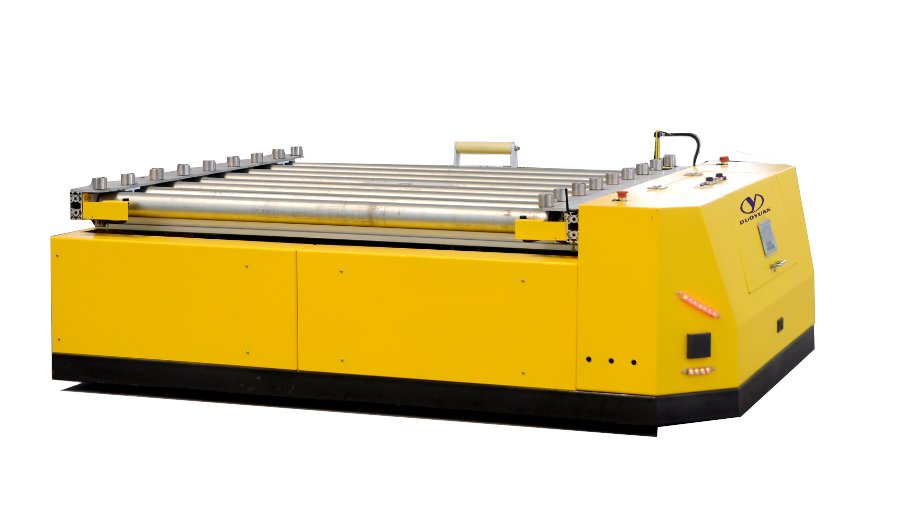

Roller Conveyor AGV

Underride Towing AGV

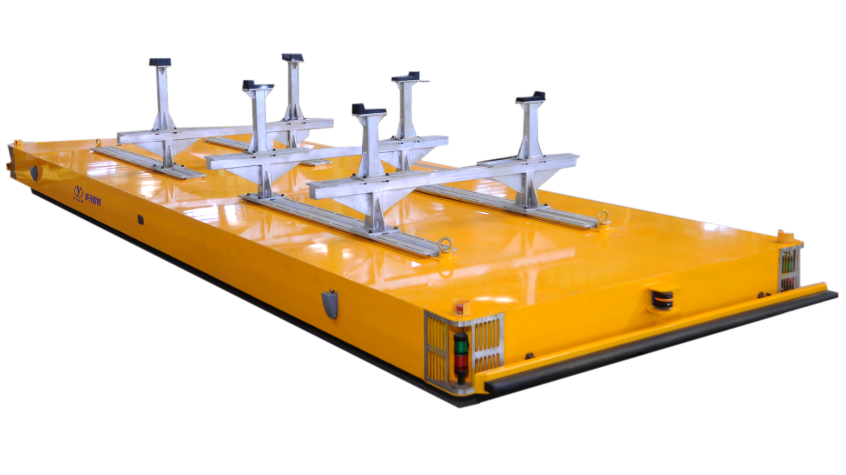

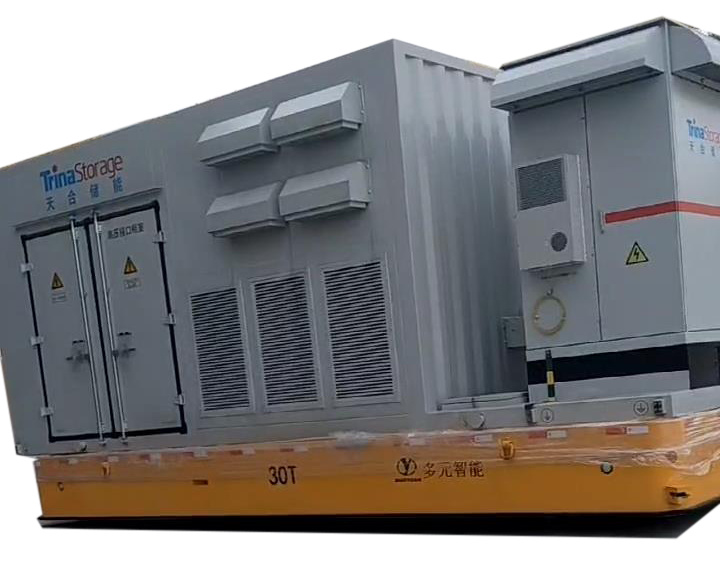

Ultra-heavy-duty Transport AGV

Dimensions

5700×2200×700mm

4800×1900×300mm

1600×350×260mm

5700×2200×700mm

Load Capacity

Lifting: 2500KG

Payload: 0.5~2T

Towing: 0.5~3T

Payload: 0.5~30T

Core Function Module

Electric scissor/cylindrical lift

Chain/belt-type roller

Multi-mode towing hooks

Heavy-duty structural platform

Drive Configuration

Dual-mode (steering/differential)

Differential/steering wheel

Differential/steering wheel

Differential/steering wheel

Power Supply

Battery/non-contact hybrid

Lithium battery (online charging)

Lithium/lead-acid battery

Lithium battery (online charging)

Guidance Technology

Magnetic tape/wire/electromagnetic

Magnetic tape/wire

Magnetic tape/wire/nail

Magnetic tape/wire/electromagnetic

Operating Speed

-

-

6~48m/min

6~36m/min

Application Scenarios

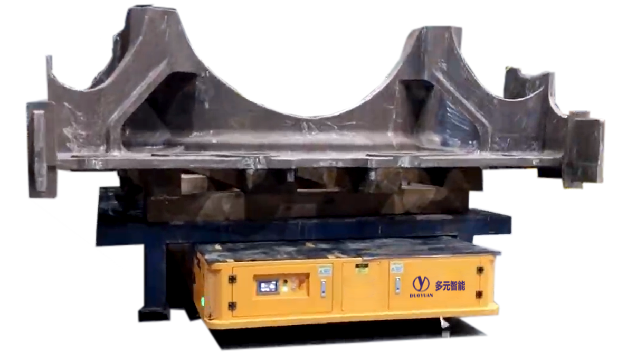

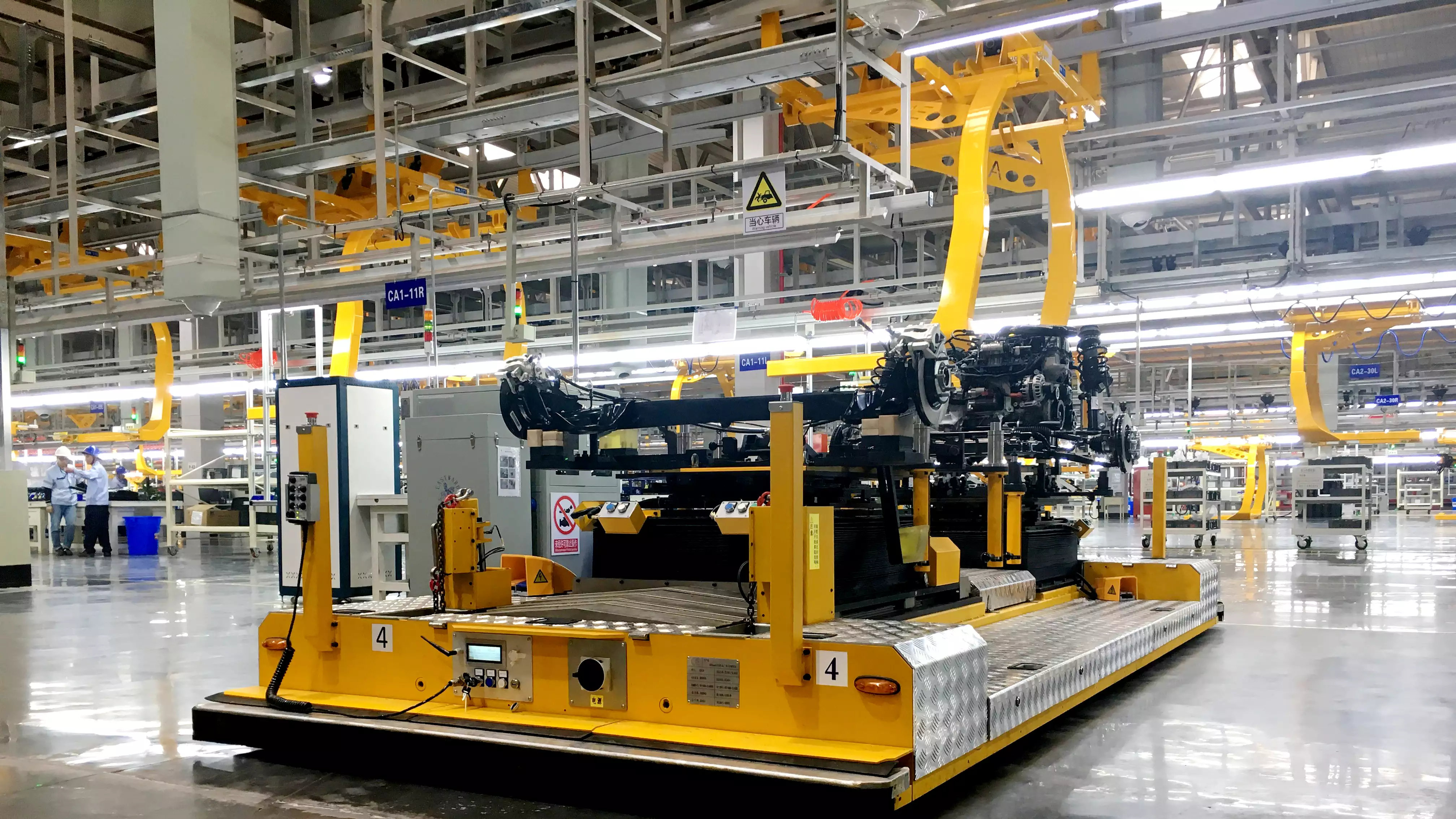

Heavy component lifting & assembly

Warehouse line docking

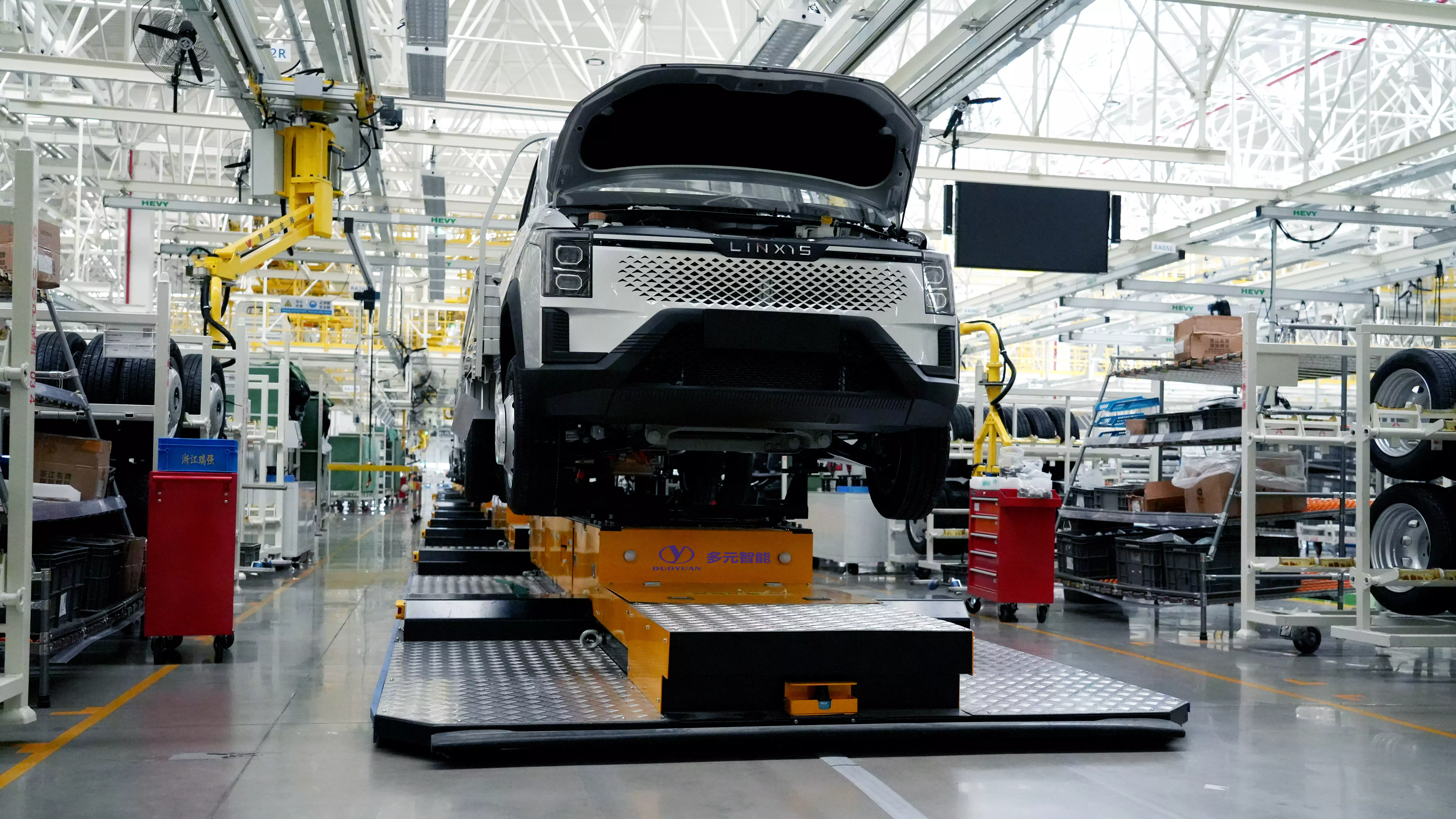

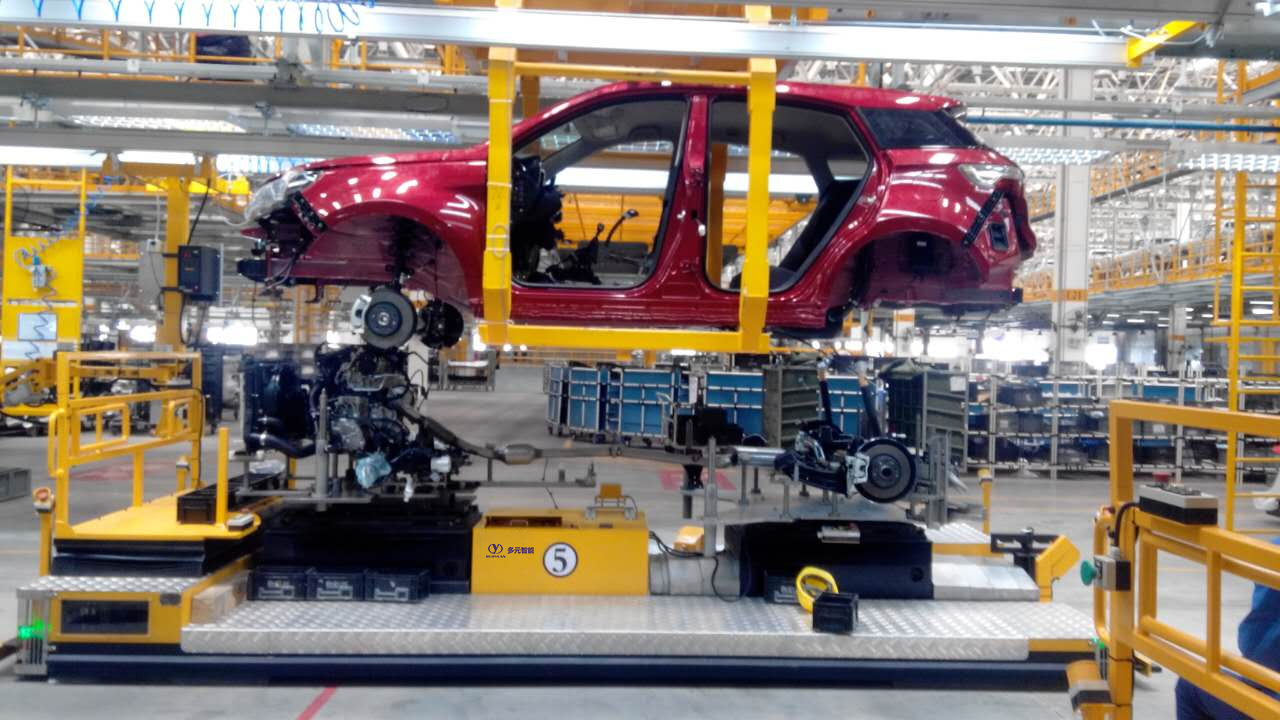

Flexible automotive parts delivery

Cross-plant transport of ultra-heavy materials
